Application of hydraulic steel pipe in excavator arm pipeline and chassis pipeline

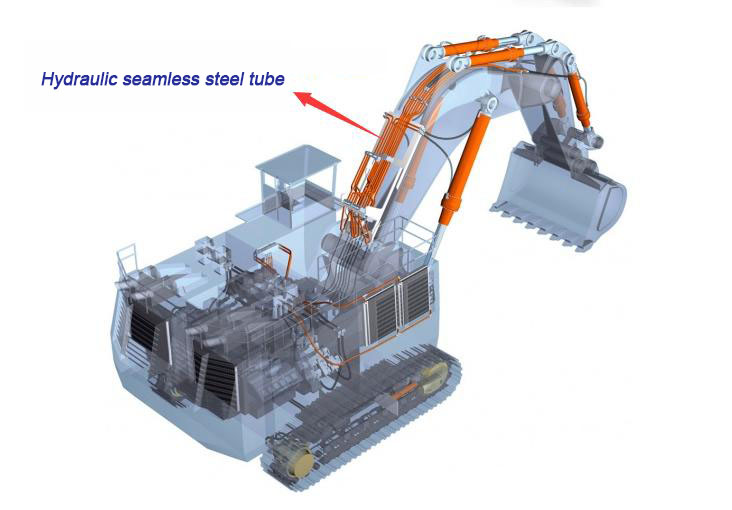

Excavator arm hydraulic pipeline

DIN2391/C and EN10305-4 hydraulic seamless steel tube with high priecsion is widely used in engineering machinery vechial, such as excavator arm pipeline and chassis pipeline.

The hydraulic steel tube mainly types are Galvanzed steel tube,Phosphated steel pipe and bright steel tube.(usually called Anaerobic bright steel pipe). The tube’s delivery condition could be BK, NBK,GBK ,BKW,BKS. The users could choose the diffierent delivery condition according to their requirments.

Excavator arm pipeline and chassis pipeline usually adopt color galvanized high precison steel tube. They have good performance in anti rust and anti coorosion.

DIN2391 Hydraulic tube used in Excavator arm pipeline’s size from 4mm-89mm ,Its advantages include no oxide layer on the inner and outer walls, no leakage under high pressure, high precision, no deformation during cold bending, no cracks when expanding or flattening.

What’s the hydraulic seamless steel  tube production process?

Raw material(steel bar)→Chemical and mechanical inspection→ Hot piercing→Pipe billet→Acid pickling and phosphoric→Cold drawn or cold rolled→Heat treatment→End cutting→End punching→Cold drawn

or Cold rolled (Mold checking and size inspection during  processing )→ Heat treat(the second )→ outer or inner surface cleaning→final heat treatment(Anaerobic annealing, anaerobic normalizing, aerobic annealing, etc.  BK,NBK,GBK etc)→Mechanical inspection→straightening→Cut into required length(5.8meters or 6 meters pipe)→100% Eddy current test→100% Size and surface inspection test→Black phosphating or Zinc cotating orPolishing→Marking if needs→Anti-rust Oiling→Packing→Delivery.

Every piece will under Eddy current flaw detection to make sure that the tube could work in high pressure and won’t outleakage. Both ends are covered with plastic covers and covered with plastic films. This can effectively avoid scratches on pipe orifice and pipe surface.

Shandong New gapower Metal Product Co.,LTD is professional hydraulic steel tube manufactuer. We could provide Certification according to EN 10204 3.1 and provide inspection items: Tensile strength, yield strength,Elongation  and Flattenging, Flaring. Chemical analysis and Eddy Current Test 100%.


 Also could support the third Party Insitution

Welcome clients to inquire.
